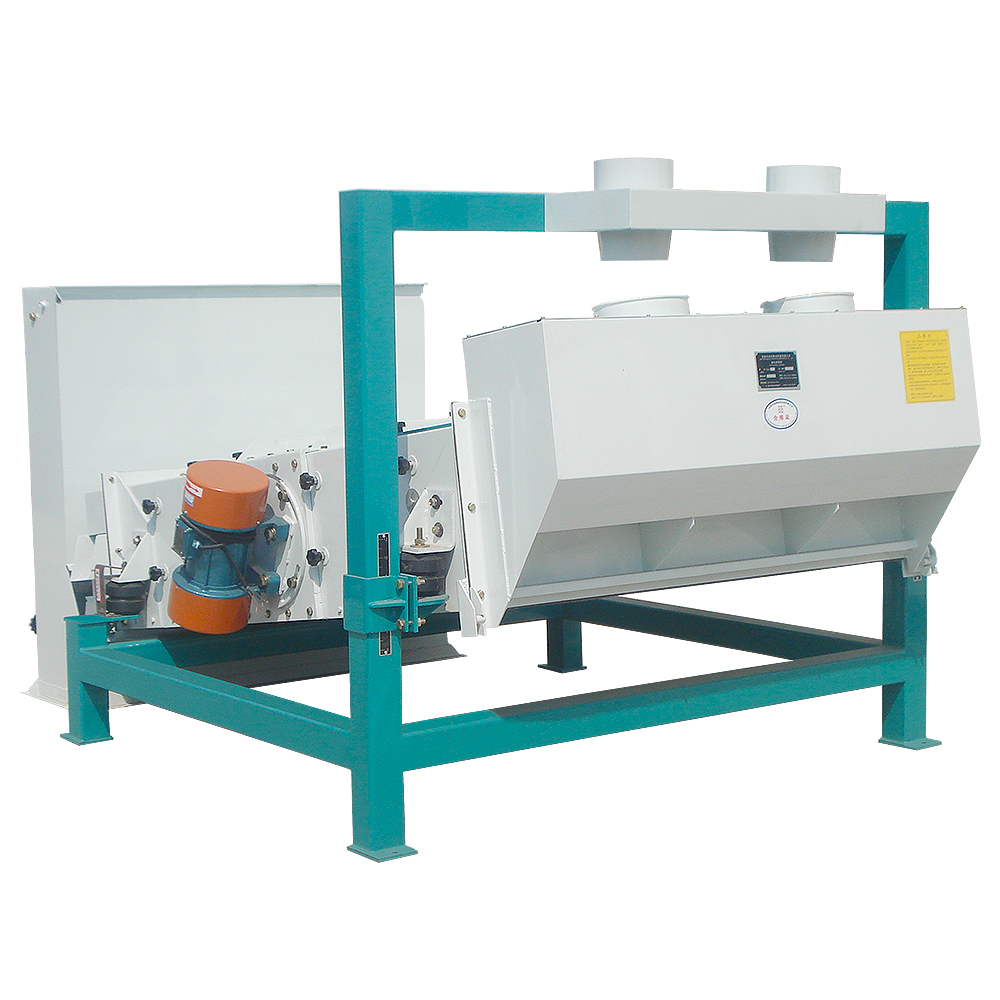

Vibrating Cleaner
TQLZ Vibrating Cleaner is applicable to food processing and raw grain cleaning in grain warehouses.Different specifications of the screen surface can be used for cleaning up the large and small light hybrids in wheat,rice,Oils.It has two sides of screen surfaces,good sealing,good cleaning effect for food containing large miscellaneous and can be used for particle separation in food and chemical industries.
Characteristic of function
◆ Compact structure and good sealing.
◆ Low noise，low power consumption
◆ Run smoothly，good clean effect，high production efficiency.
◆ By using the vibration motor，the exciting force size，vibrating sieve body direction and inclination can be adjusted as needed.
Main technical data
|
Model |
Output(t/h ) |
Power(kW) |
Air Volume (m7min) |
Weight(kg) |
Dimension(LxWxH) |
|
TQLZ200 |
17-26 |
2x0.75 |
120-170 |
1550 |
2800x2600x1700 |
|
TQLZ180 |
15-24 |
2x0.55 |
80-120 |
1350 |
2750x2400x1700 |
|
TQLZ150 |
12-20 |
2x0.55 |
65-80 |
1250 |
2750x2150x1700 |
|
TQLZ125 |
10-15 |
2x0.37 |
55-65 |
1060 |
2450x1780x1600 |
|
TQLZ100 |
9-12 |
2x0.25 |
36-45 |
900 |
2400x1550x1550 |
